ESP8266 Pin connection with STM32 and the external power as follows
ESP8266 Pin STM32 Pin External Power Supply
Rx PB10 -Tx
Tx PB11 -Rx
RST PB9
3V3 External Power Supply 3V3
EN External Power Supply 3V3
GND External Power Supply GND
GND External Power Supply GND
Do not supply 5V to ESP8266.I did this mistake and burnt the module. I had to reorder another module. I tried using the STM32 3V3 power supply to esp8266 at first. ESP8266 didn't work as expected due to inconstant power. So I used an External power supply that could supply esp8266 a constant 3V3 voltage. One more important thing to mention is that you need to power the ESP8266 first through the external power before powering the STM32 board. When I powered STM32 board first and then ESP8266. Blue LED on ESP8266 turned on and ESP8266 did not respond. When I switch the order, powered ESP8266 first and then STM32,BLUE LED on ESP8266 blinked once and ESP8266 started responding.
Create an account on thinkspeak.com and create a new channel with field1 and field2 for temperature and humid.Use the APIKey when sending data for field1 and field2.
Code
/* Includes ------------------------------------------------------------------*/
#include "stm32f10x.h"
#include "STM32vldiscovery.h"
#include "STM32f10x_rcc.h"
#include "STM32f10x_gpio.h"
#include "STM32f10x_usart.h"
#include "stdio.h"
#include "string.h"
void Delay(_IO uint32_t nCount);
void GPIOInit(void);
void Clk_Init(void);
void USARTInit(void);
uint8_t RData[30];
char f;
void ESP8266_receive_string();
void ESP8266_send_string(char* st_pt);
char ESP8266_check_Response(int);
int i=0;
bool started=FALSE;
int t=0;
char resAT,resECHO,resMODE,resPWD,resMUX,resSERVER,resFSR,resSEND,resCLOSE;
int main(void)
{
Clk_Init();
GPIOInit();
USARTInit();
GPIOB->BRR=GPIO_Pin_9;
Delay(50000);
//Set Reset Pin
GPIOB->BSRR=GPIO_Pin_9;
Delay(500000);
Delay(500000);
Delay(500000);
//Test if respose is OK
for(int i=0;i<6;i++){
ESP8266_send_string("AT\r\n");
ESP8266_receive_string();
resAT=ESP8266_check_Response(1);
if (resAT=='t'){
break;
}
}
//Disable ECHO
if (resAT=='t'){
for(int i=0;i<6;i++){
ESP8266_send_string("ATE0\r\n");
ESP8266_receive_string();
resECHO=ESP8266_check_Response(1);
if(resECHO=='t'){
break;
}
}
}
//Set Mode to a client
if (resAT=='t'){
for(int i=0;i<6;i++){
ESP8266_send_string("AT+CWMODE=1\r\n");
ESP8266_receive_string();
resMODE=ESP8266_check_Response(1);
if(resMODE=='t'){
break;
}
}
}
//Set internet connection
if (resMODE=='t'){
for(int i=0;i<6;i++){
ESP8266_send_string("AT+CWJAP=\"YBADF\",\"GCP22363SXK2ZK4L7\"\r\n");
ESP8266_receive_string();
ESP8266_send_string("AT+CWJAP_CUR?\r\n");
ESP8266_receive_string();
resPWD=ESP8266_check_Response(1);
if(resPWD=='t'){
break;
}
}
}
while (1)
{
//Set for multiple connection
if(resAT=='t' && resMODE=='t' && resPWD=='t' ){
for(int i=0;i<6;i++){
ESP8266_send_string("AT+CIPMUX=1\r\n");
ESP8266_receive_string();
resMUX=ESP8266_check_Response(1);
if(resMUX=='t'){
break;
}
}
//start TCP connection
if(resMUX=='t'){
for(int i=0;i<6;i++){
ESP8266_send_string("AT+CIPSTART=0,\"TCP\",\"api.thingspeak.com\",80\r\n");
ESP8266_receive_string();
resSERVER=ESP8266_check_Response(1);
if(resSERVER=='t'){
break;
}
}
}
//set the length of characters that will be sent
if(resSERVER=='t'){
for(int i=0;i<6;i++){
ESP8266_send_string("AT+CIPSEND=0,56\r\n");//49
ESP8266_receive_string();
resSEND=ESP8266_check_Response(1);
if(resSEND=='t'){
break;
}
}
}
//Send 56 charactors including \r\n
//XXXXXXXX(Enter your api_key)
if(resSEND=='t'){
for(int i=0;i<6;i++){
ESP8266_send_string("GET /update?api_key=xxxxxxxxxxxxxxxx&field1=7&field2=1\r\n");
ESP8266_receive_string();
resSEND=ESP8266_check_Response(1);
if(resSEND=='t'){
break;
}
}
}
//close tcp single connection
for(int i=0;i<6;i++){
ESP8266_send_string("AT+CIPCLOSE=0\r\n");
ESP8266_receive_string();
resCLOSE=ESP8266_check_Response(1);
if(resCLOSE=='t'){
break;
}
}
}
}
}
char ESP8266_check_Response(int n)
{
char* s= (char *)RData;
int i;
if (n==1){
for (i=0;i<30;i++){
if (*s=='O'){
s++;
if(*s=='K'){
return 't';
}
}else{
s++;
if (i==29){
return 'f';
}
}
}
}
}
void ESP8266_send_string(char* st_pt)
{
while(*st_pt) {//if there is a char
while(USART_GetFlagStatus(USART3, USART_FLAG_TXE) == RESET);
USART_SendData(USART3,*st_pt++); //process it as a byte data
}
}
void ESP8266_receive_string()
{
int i;
for (i=0;i<30;i++ ){
while(USART_GetFlagStatus(USART3, USART_FLAG_RXNE) == RESET);
f=USART_ReceiveData(USART3); //process it as a byte data
RData[i]=f;
}
}
void USARTInit()
{
USART_InitTypeDef USART_InitStructure;
USART_InitStructure.USART_BaudRate=115200; USART_InitStructure.USART_HardwareFlowControl=USART_HardwareFlowControl_None;
USART_InitStructure.USART_Mode=USART_Mode_Tx | USART_Mode_Rx;
USART_InitStructure.USART_Parity=USART_Parity_No ;
USART_InitStructure.USART_StopBits=USART_StopBits_1 ;
USART_InitStructure.USART_WordLength=USART_WordLength_8b;
USART_Init(USART3,&USART_InitStructure);
USART_Cmd(USART3,ENABLE);
}
void Clk_Init()
{
/* Enable the GPIO_LED Clock */
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOC | RCC_APB2Periph_GPIOB | RCC_APB2Periph_GPIOA | RCC_APB2Periph_AFIO | RCC_APB2Periph_USART1, ENABLE);
RCC_APB1PeriphClockCmd(RCC_APB1Periph_USART3, ENABLE);
}
void GPIOInit()
{
GPIO_InitTypeDef GPIO_InitStructure;
/* Configure the GPIO_LED pin */
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_9;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(GPIOC, &GPIO_InitStructure);
//Configure RST pin
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_9;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(GPIOB, &GPIO_InitStructure);
//USART3 PB10(TX) and PB11(RX)
GPIO_InitStructure.GPIO_Pin=GPIO_Pin_10;
GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode=GPIO_Mode_AF_PP;
GPIO_Init(GPIOB,&GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin=GPIO_Pin_11;
GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode=GPIO_Mode_AF_PP;
GPIO_Init(GPIOB,&GPIO_InitStructure);
}
void Delay(__IO uint32_t nCount)
{
for(; nCount != 0; nCount--);
}

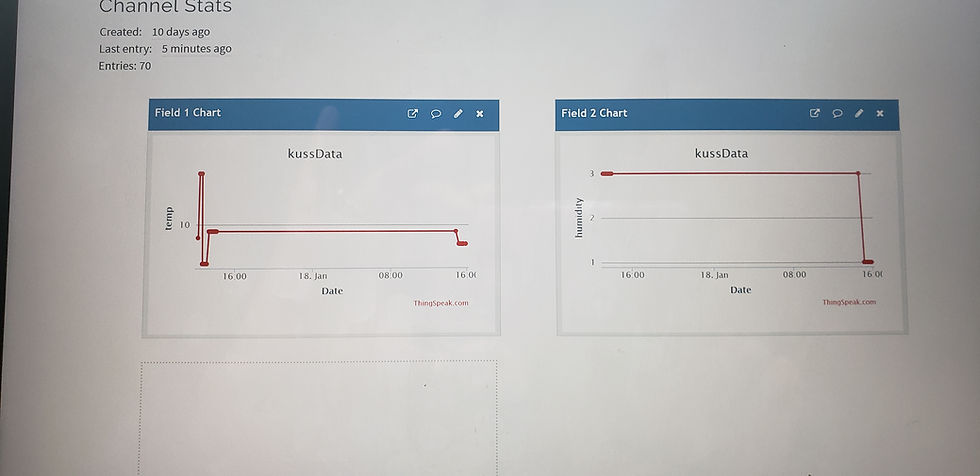

ThinkSpeak Data
Wire Connection
